Part 1:
Racing Kart
Team Project
Zou
Designer
Engineer
Bob
Welder
Machinic
Han
Illusratrator
Builder
2024 Summer
Welding
Metal lathe/cutting
Wood work with machine
Laser cut
3D printing
Adobe Illustrator
SolidWorks
Project brief:
Build a wooden kart powered by a drill, learn how to make powertrain, steering and brakes.
Power unit assembly
Making parts
Welding for transimission and steering
Chassis

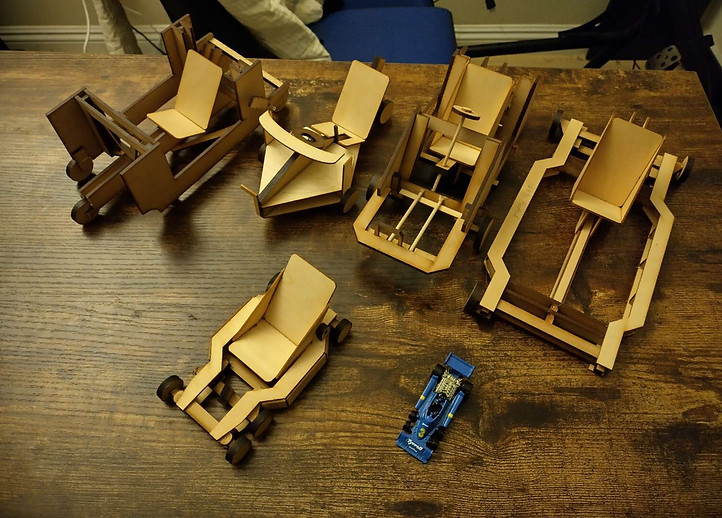

Prototyping
Independent suspension concept
Stressed structural power unit
Monocoque
&
6 Wheels
Final chassis design
4-wheel-steering system
Assembling and adjusting
Pedal, steer rack , throttle cable
Strengthened steering column
with quick release steering wheel
Evolution of the brake

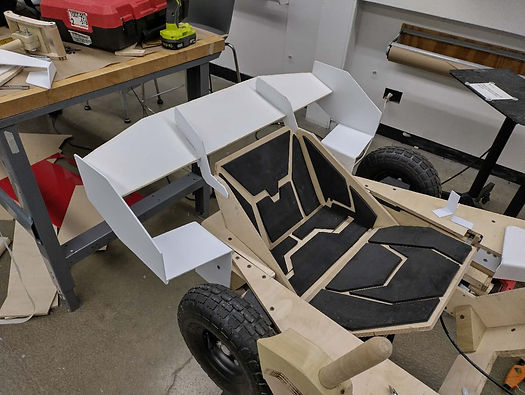

Seat padding

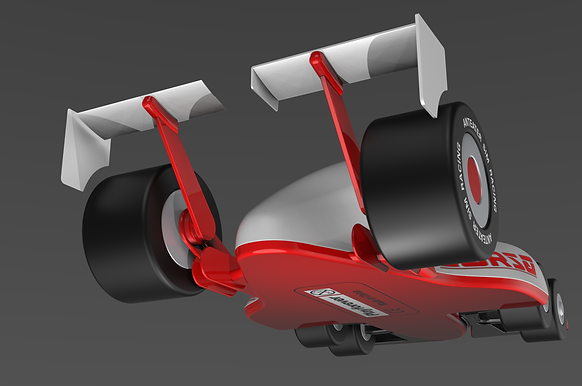

Making fairing
Decal & livery
Part 2:
Make it into a toy
2021Fall
2022Fall
2024Fall
3D printing
SolidWorks
KeyShot
This is a topic I've been keep working on.
Introducing
- Enable kids to release their emotion
Providing signals for parents
- Avoid children hurting each other
No violence on living things
- Minimize property damage
Deciding what to crash is a process of thinking before doing
- Share your anger! Let’s smash together!
Express your emotion, and become ‘listener’
Crash Simulating Toy Car
Benchmark product
Parting and magnet machainsim figured out

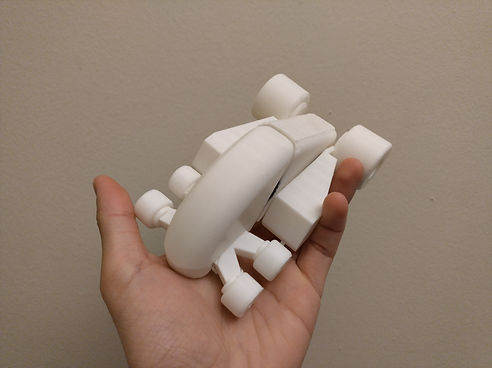

Mock-up
Main form
